VQMT3D Project: Report 2 on 3D-video Quality Analysis

MSU Graphics & Media Lab (Video Group)

Projects, ideas: Dr. Dmitriy Vatolin

Implementation: Alexander Voronov, Denis Sumin, Marat Arsaev, Vyacheslav Napadovsky, Alexander Belous, Vladimir Yanushkovsky

In cooperation with IITP RAS


About the Report


The report presents detailed (342 pages) evaluation results of 5 S3D films, which were captured with stereoscopic camera systems.

Download report

Analysed films

Examined problems:

  • Dolphin Tale (2011)
  • Drive Angry (2011)
  • The Three Musketeers (2011)
  • Hugo (2011)
  • Sanctum (2011)
  • excessive horizontal disparity
  • vertical disparity
  • color mismatch
  • sharpness mismatch

The report comprises three main parts.

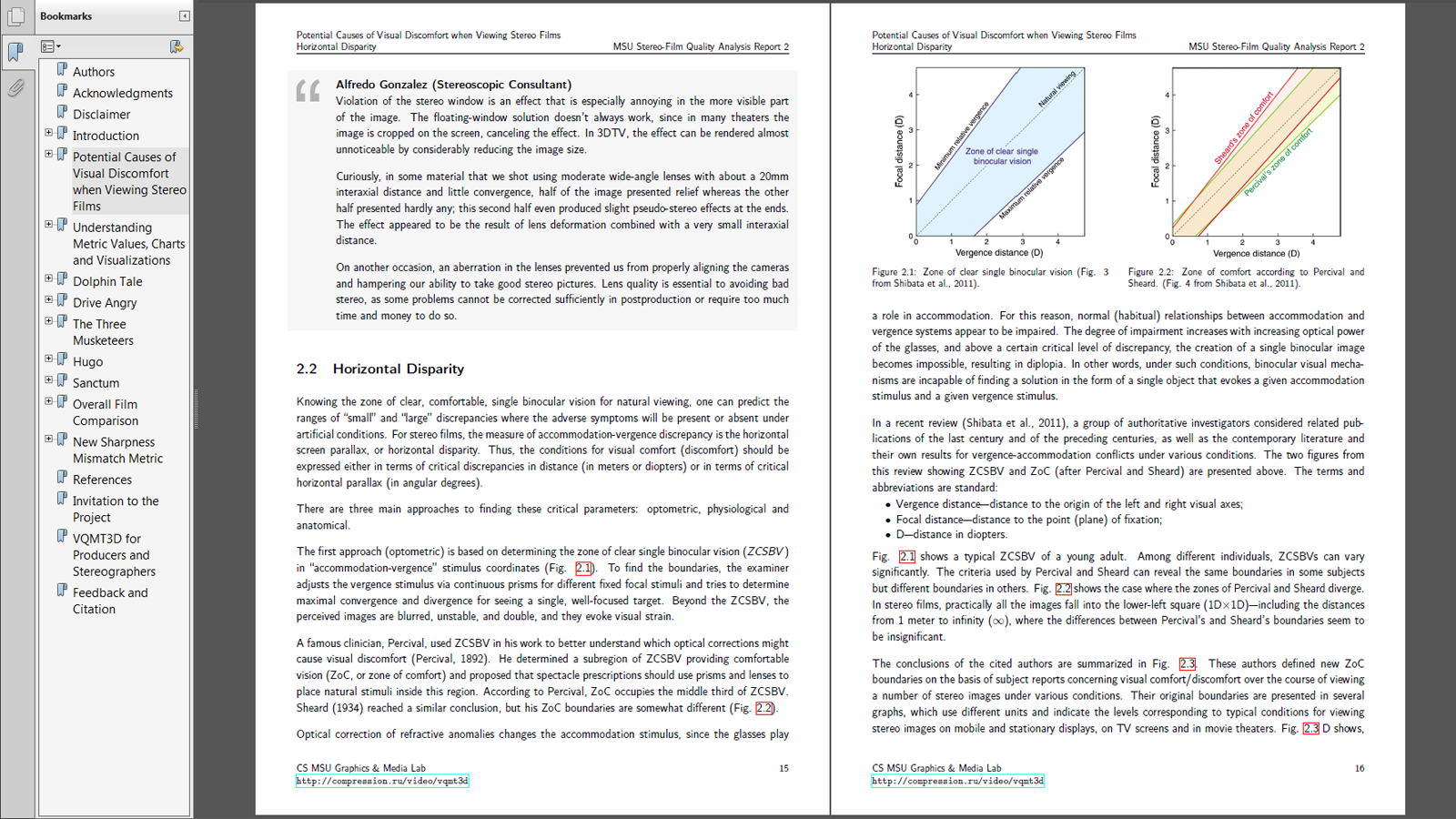

  1. Thorough description of visual-discomfort potential causes while viewing stereo 3D films (see page from report)

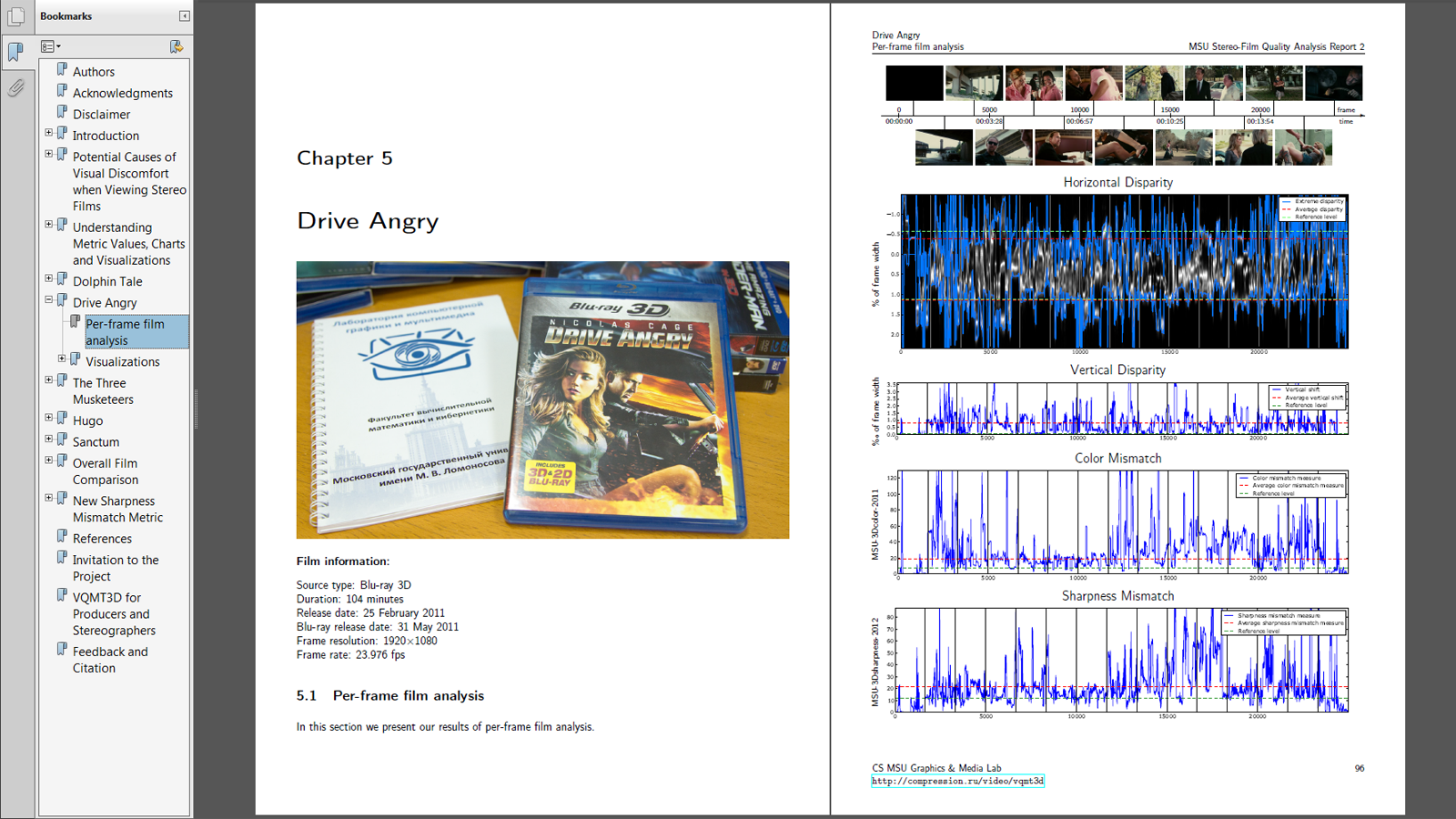

  2. Detailed analysis of five films. Each film description consists of two parts:
    • Full per-frame analysis with charts showing metric values for each frame; (see page from report)

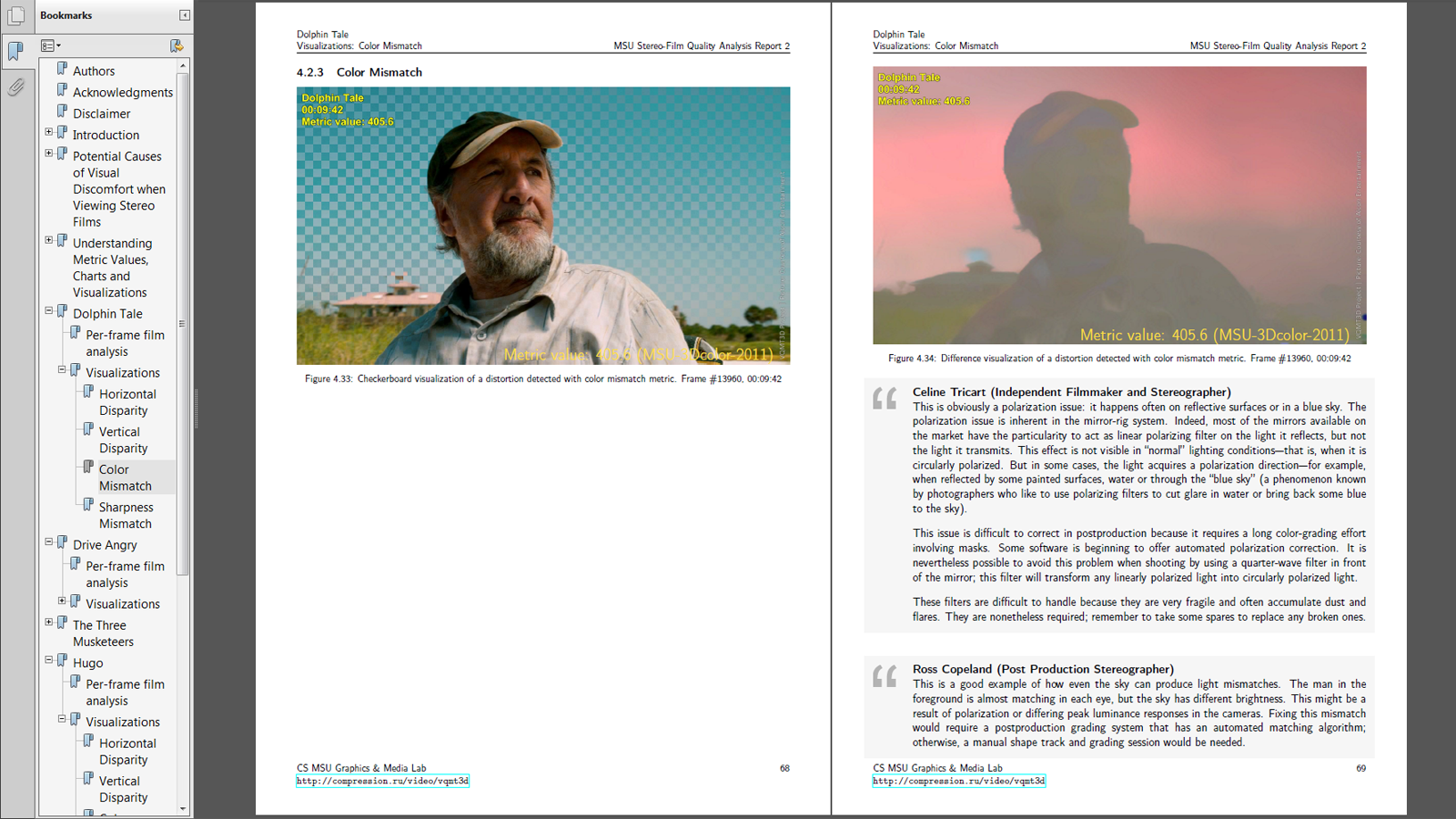

    • Visualizations demonstrating artifacts in frames that earned a poor rating according to our metrics (see page from report).
      Please, see example visualizations for Galapagos at the VQMT3D project page.

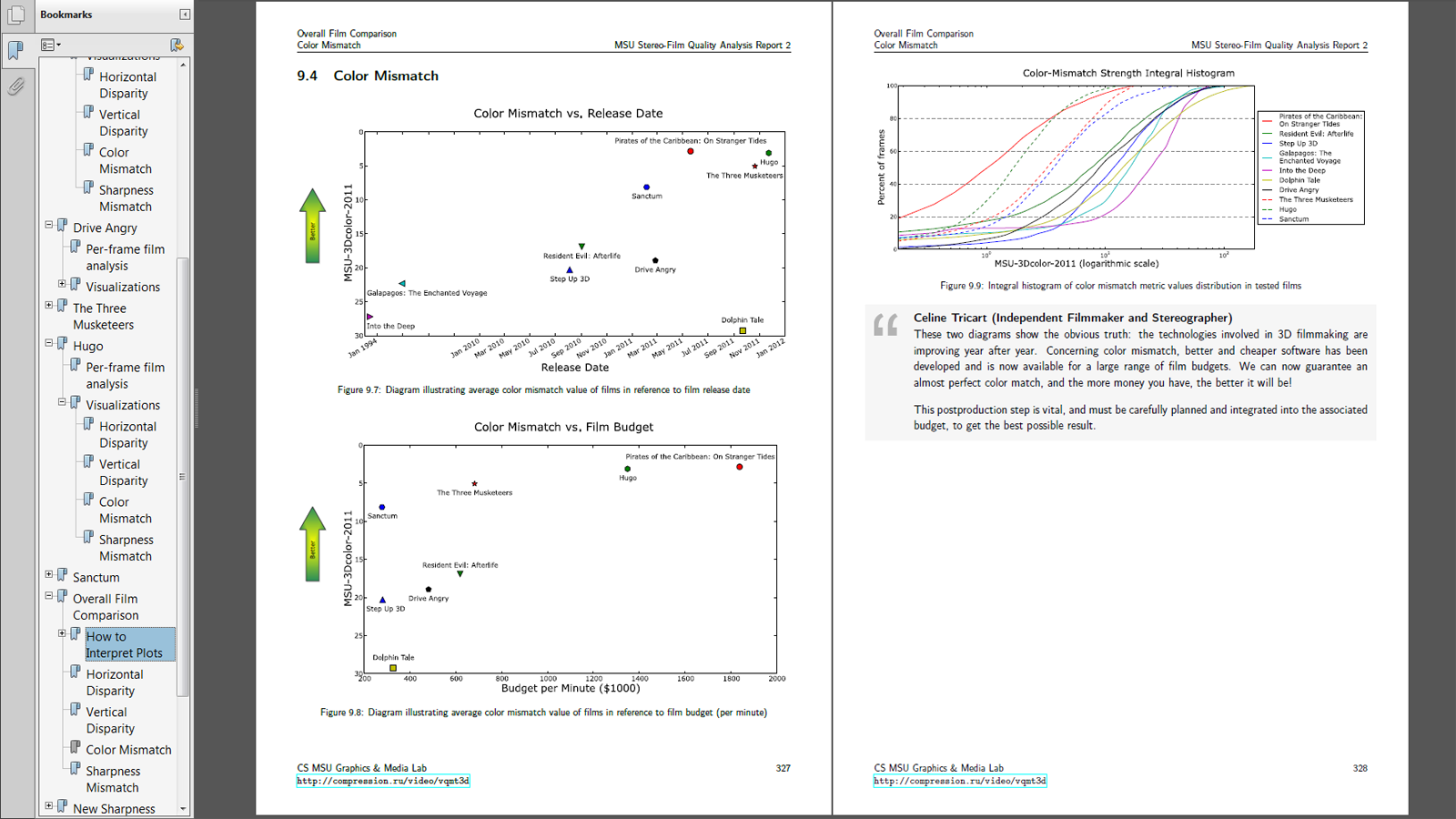

  3. Overall film comparison. Here go charts depicting the average metric values and distribution of these values in each film. (see page from report).
    Some charts showing overall comparison results are presented in the Overall evaluation results section on this page.

Professional stereographers contributed to the analysis with valuable comments and feedbacks.


New Sharpness Mismatch Metric


A new metric is presented in the second report for evaluation of the views correspondence in sharpness.

MSU-3Dfocus-2011 metric, which was presented in the first report, was used for detailed analyzing of artifacts in examined stereo films. That metric provided us a valuable assistance while working on the first report. Meanwhile we have developed an improved metric (MSU-3Dsharpness-2012).

The new MSU-3Dsharpness-2012 metric enables the following results:

Please, see a detailed description of the new metric in Appendix A of the second report.


Contributed Stereographers


(in alphabetical order)


Overall evaluation results


In this section we present overall comparison charts.
First chart in each subsection (e.g. Depth Budget or Vertical Disparity) shows average score of each film according to the metric.
The second chart is an integral histogram which shows distribution of metric values throughout the film.
Please, read more about the charts and particular films in the report.

Depth Budget

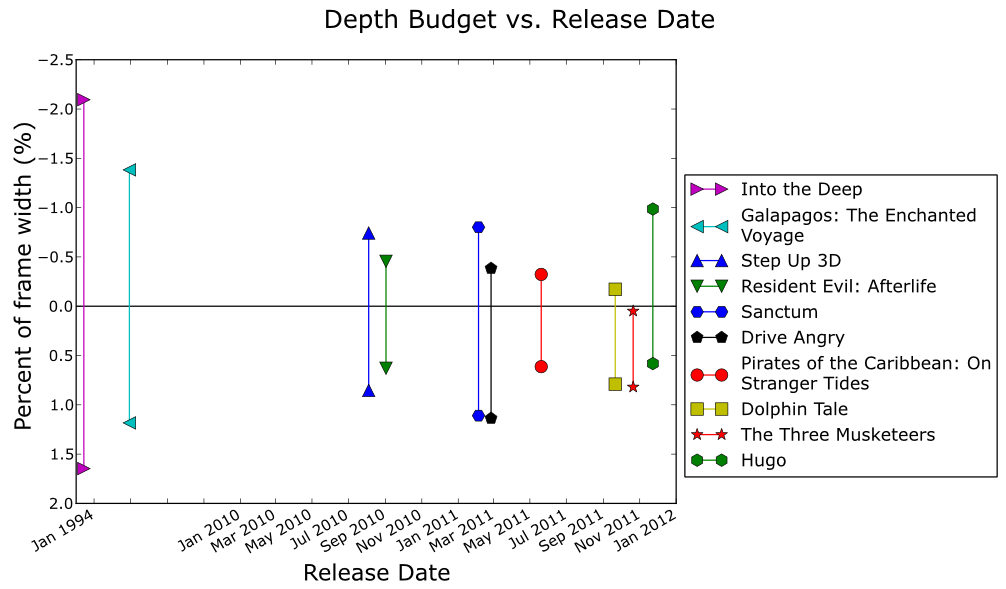

Comparison of average depth budget

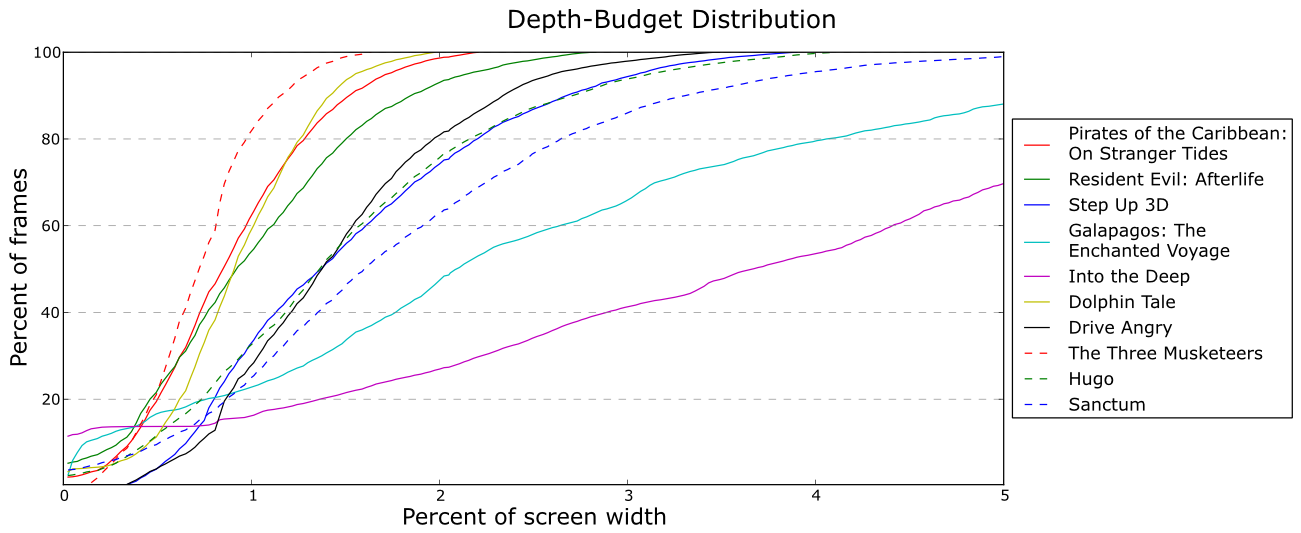

Depth budget distribution analysis

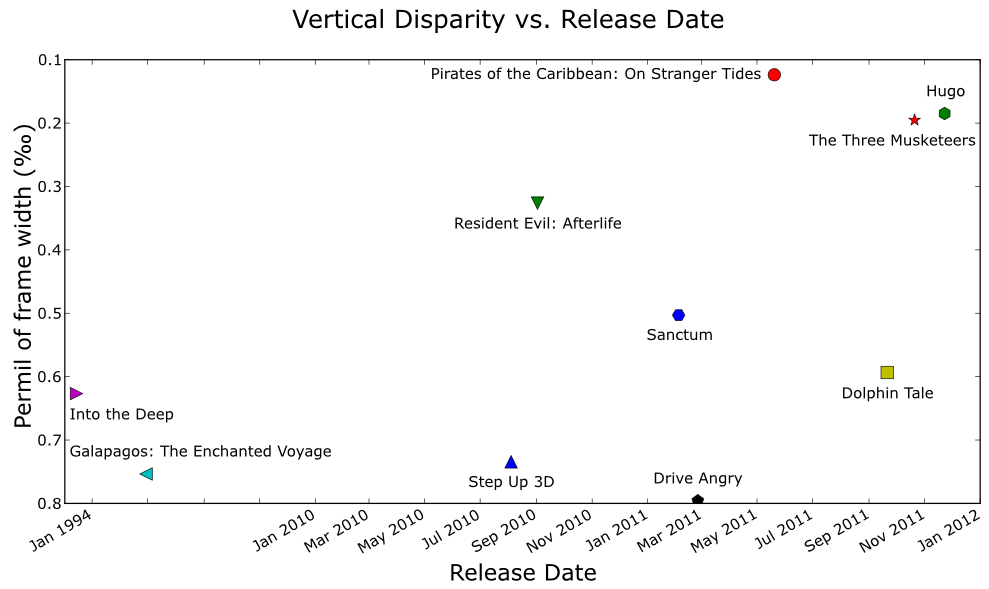

Vertical Disparity

Comparison of average vertical disparity

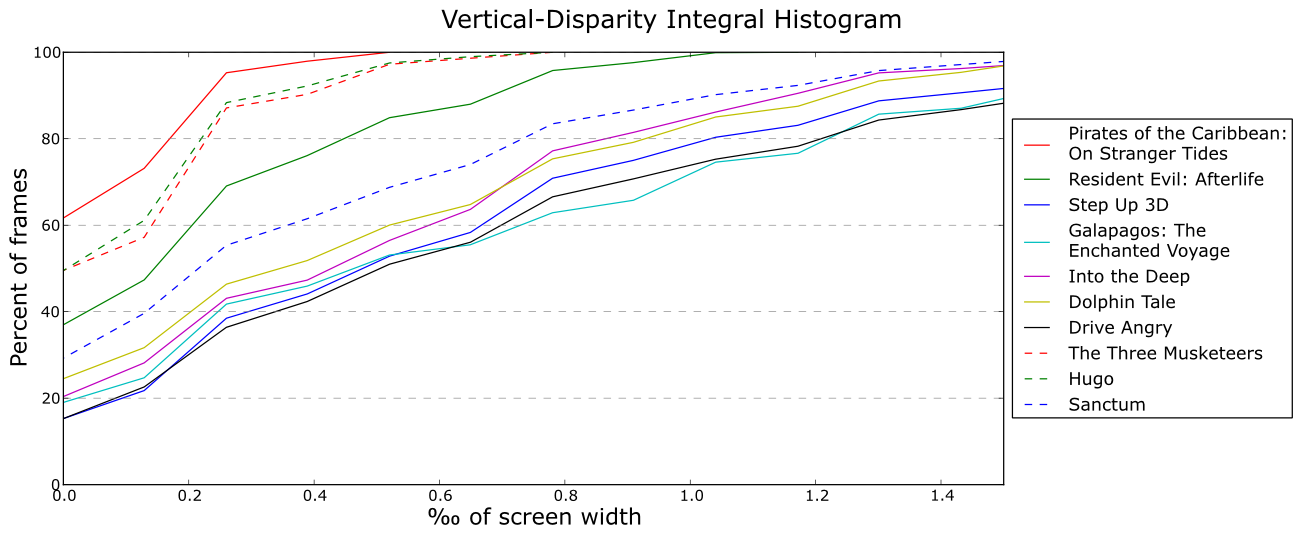

Vertical disparity values distribution

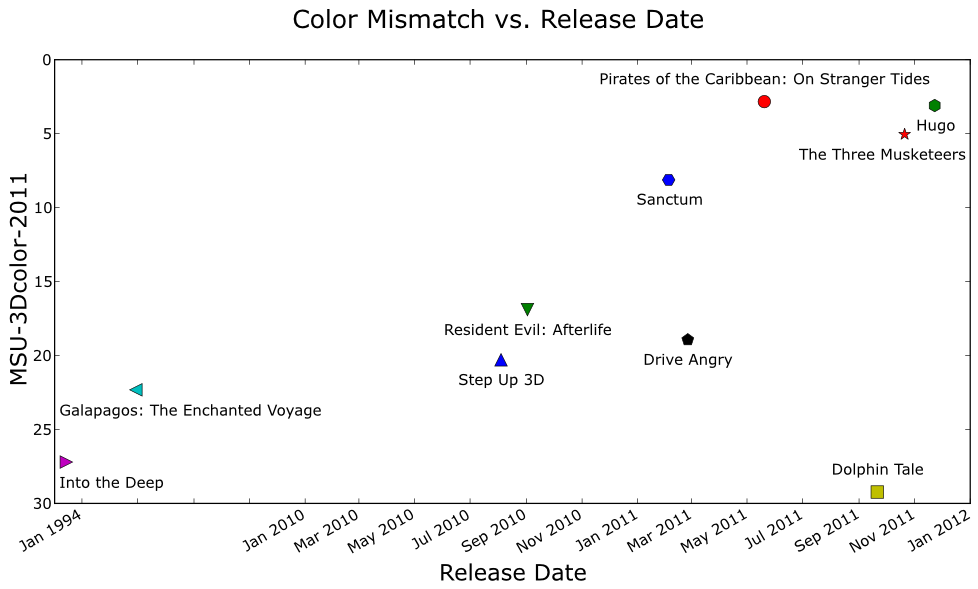

Color Mismatch

Comparison of average color mismatch

Color mismatch values distribution

Sharpness Mismatch

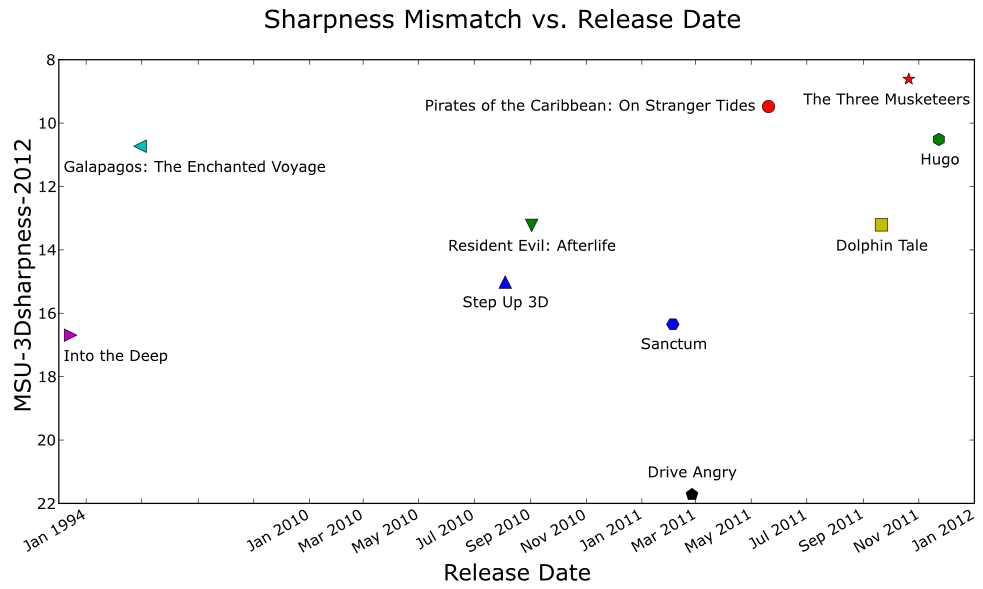

Comparison of average sharpness mismatch

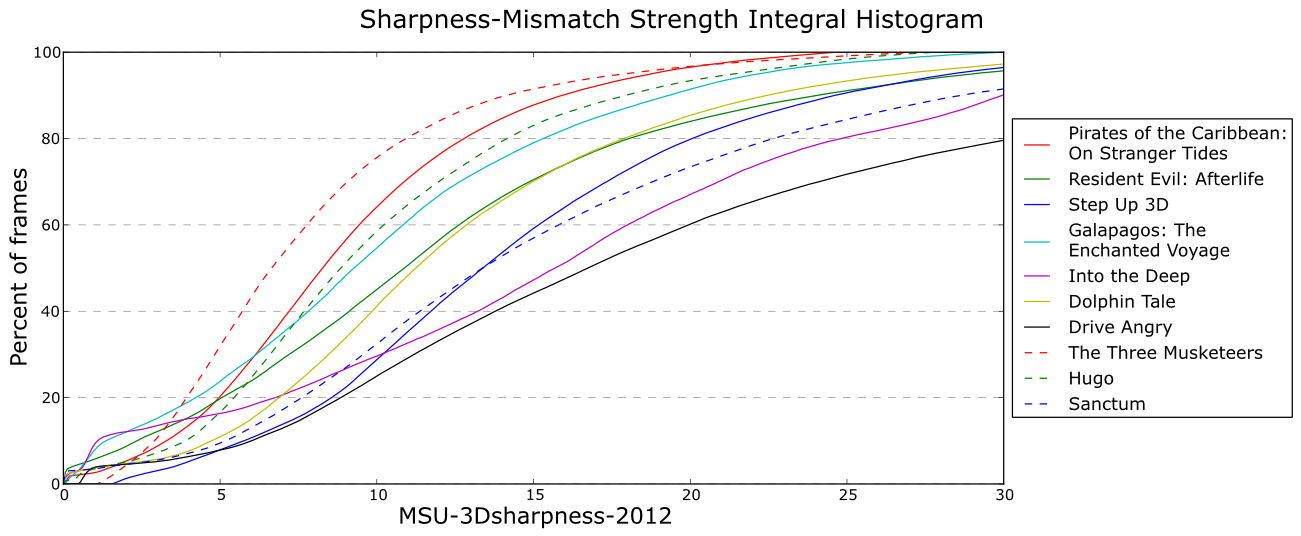

Sharpness mismatch values distribution


Publications


When you want to make a reference to this project, please refer one of the following publications:

  1. Mikhail Erofeev, Dmitriy Vatolin, Alexander Voronov, Alexey Fedorov,
    “Toward an Objective Stereo-Video Quality Metric: Depth Perception of Textured Areas,” [pdf]
    International Conference on 3D Imaging (IC3D),
    pp. 1–6, 2012. doi:10.1109/IC3D.2012.6615120
  2. D. Akimov, A. Shestov, A. Voronov, D. Vatolin,
    “Automatic Left-Right Channel Swap Detection,” [pdf]
    International Conference on 3D Imaging (IC3D),
    pp. 1–6, 2012. doi:10.1109/IC3D.2012.6615126
  3. A. Voronov, A. Borisov, D. Vatolin,
    “System for Automatic Detection of Distorted Scenes in Stereo Video,” [pdf]
    Proceedings of the Sixth International Workshop on Video Processing and Quality Metrics (VPQM),
    2012.
  4. A. Voronov, D. Vatolin, D. Sumin, V. Napadovsky, A. Borisov,
    “Towards Automatic Stereo-video Quality Assessment and Detection of Color and Sharpness Mismatch,” [pdf]
    International Conference on 3D Imaging (IC3D),
    pp. 1–6, 2012. doi:10.1109/IC3D.2012.6615121
  5. A. Voronov, D. Vatolin, D. Sumin, V. Napadovsky, and A. Borisov,
    “Methodology for stereoscopic motion-picture quality assessment,” [pdf]
    Proc. SPIE 8648, Stereoscopic Displays and Applications XXIV,
    vol. 8648, pp. 864810-1–864810-14, March 2013. doi:10.1117/12.2008485
  6. A. Bokov, D. Vatolin, A. Zachesov, A. Belous, and M. Erofeev,
    “Automatic detection of artifacts in converted S3D video,” [pdf]
    Proc. SPIE 9011, Stereoscopic Displays and Applications XXV,
    vol. 9011, pp. 901112-1–901112-14, March 2014. doi:10.1117/12.2054330

Reports overview


Stereo-analysis project description

Report 1 (S3D shooting quality analysis of 5 movies)

Release date: March 7, 2013

Download (Additional info for bloggers and press)

Pages: 246;   Figures: 295

Film list:

  • Pirates of the Caribbean: On Stranger Tides
  • Resident Evil: Afterlife
  • Step Up 3D
  • Galapagos: The Enchanted Voyage
  • Into the Deep

Film list:

  • Dolphin Tale
  • Drive Angry
  • Hugo
  • The Three Musketeers
  • Sanctum

Film list:

  • Alice in Wonderland
  • Clash of the Titans
  • Conan the Barbarian
  • Green Lantern
  • Abraham Lincoln: Vampire Hunter

Report 4 (S3D shooting quality analysis of 5 movies)

Release date: October 1, 2013

Download

Pages: 301;   Figures: 402

Film list:

  • A Very Harold & Kumar 3D Christmas
  • Pina
  • Step Up Revolution
  • Resident Evil 5: Retribution
  • The Amazing Spider-Man

Film list:

  • The Avengers
  • The Chronicles of Narnia: The Voyage of the Dawn Treader
  • Gulliver’s Travels
  • Immortals
  • Wrath of the Titans

Report 6 (Stereo Window analysis of 10 movies)

Release date: September 10, 2014

Download (Additional info for bloggers and press)

Pages: 415;   Figures: 455

Film list:

  • The Amazing Spiderman
  • The Three Musketeers
  • Pirates of the Caribbean: On Stranger Tides
  • Dolphin Tale
  • Drive Angry
  • The Avengers
  • John Carter
  • G-Force
  • Abraham Lincoln: Vampire Hunter
  • Clash of the Titans

Report 7 (Stereo Window analysis of 10 movies)

Release date: October 22, 2014

Download (Additional info for bloggers and press)

Pages: 333;   Figures: 348

Film list:

  • Pina
  • Step Up Revolution
  • Resident Evil: Retribution
  • Hugo
  • Immortals
  • A Very Harold & Kumar 3D Christmas
  • Green Lantern
  • Conan the Barbarian
  • Wrath of the Titans
  • Alice in Wonderland

Film list:

  • A Very Harold & Kumar 3D Christmas
  • Abraham Lincoln: Vampire Hunter
  • The Avengers
  • Alice in Wonderland
  • Conan the Barbarian
  • The Chronicles of Narnia: The Voyage of the Dawn Treader
  • Clash of the Titans
  • Drive Angry
  • Dolphin Tale
  • Galapagos: The Enchanted Voyage
  • Green Lantern
  • Gulliver's Travels
  • Hugo
  • Immortals
  • Into the Deep
  • Pirates of the Caribbean: On Stranger Tides
  • Pina
  • Resident Evil: Afterlife
  • Resident Evil: Retribution
  • Sanctum
  • Step Up 3D
  • Step Up Revolution
  • The Amazing Spider-Man
  • The Three Musketeers
  • Wrath of the Titans

Report 9 (Temporal Shift, Stuck-to-Background Objects, 2D to S3D conversion in Captured Films)

Approximate release date: 1st quarter of 2016

The film list includes 105 movies

Report 10 (Overall analysis of 105 movies)

Approximate release date: 2nd-3rd quarter of 2016

The film list includes 105 movies


Download


Full report (342 pages) is absolutely free but download is available only for industry professionals (due to publication of real mistakes in the post-production process).

To download the report, please fill-in the request form.
You will get the download link for all reports (Reports #1–5) via e-mail.

All materials in this evaluation are used for research purposes and in accordance with Fair Use conditions. This evaluation is not published widely, but it is available for free under a subscription for stereoscopy and cinema technology professionals.
